CS73 - 1 to 1 Alcu Comp Splice

Blackburn Mechanical

$2.00 (Each)
$2.00 (Each)
$199.67 (Per 100)
$998.35 (Per 500)

Availability: Call for Availability

Buy Now

QTY:

Each

Overview
Specifications
Current Stock
Add-On Items
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: CS73 Vendor Code TAB
Manufacturer: Blackburn Mechanical
Manufacturer's Part Number: CS73

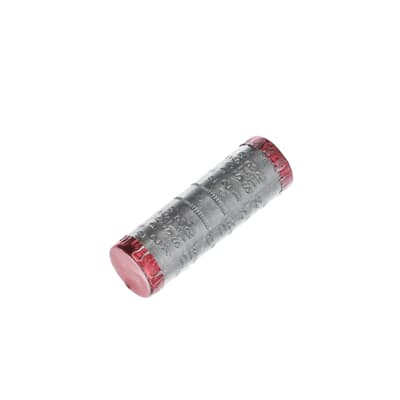

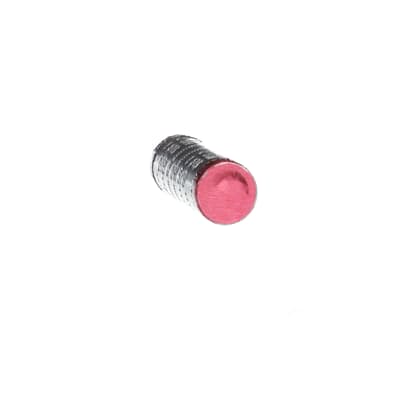

Description: 1 to 1 Alcu Comp Splice
Service Entrance Compression Splice, #2 Awg (Ascr );#1 and #2 Awg (Stranded );#1 Awg (Solid ) Conductor Size, Non-Insulated, Copper/Aluminum Conductor Material, 2 In Overall Length, Compression/Crimp Terminal, 0.05 LB/Ea
Slang Terms: Suggest a New Term
Categories: Solderless Connectors - Large Terminals & Connectors Mark as Incorrect
Suggest a New Category
Classification: Comp & Mech Lugs and Butt Splices
UNSPSC: 39121449 - Wire or cable compression splice
UPC/GTIN: 783786100613 / 00783786100613
Weight per unit: 0.05 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $2.00 (Each)
Carton: $199.67 (Per 100)
Standard Packaging: $998.35 (Per 500)

Resources

360 Images
: CS73 - 360 Image
Images
: CS73 - Small Image
: CS73 - Large Image
: CS73 - Large Image
: CS73 - Large Image
: CS73 - Large Image
Other Links
: CS73 - Other
Attachments
: CS73 - Specification Sheet

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Terminal Type: Compression;Crimp
Number of Conductors: 2
Material: Aluminum
connection: Compression
insulation: None

Material, Color, and Finish

Conductor Material: Copper;Aluminum

Dimensions and Weight

Overall Length: 2 in
Size: 2 INCH

Descriptions

Product Type: Service Entrance Compression Splice
Long Description: Service Entrance Compression Splice, #2 AWG (ASCR );#1 and #2 AWG (Stranded );#1 AWG (Solid ) Conductor Size, Non-Insulated, Copper/Aluminum Conductor Material, 2 in Overall Length, Compression/Crimp Terminal, 0.05 lb/EA
Short Description: Service Entrance Compression Splice, Non-Insulated, 2 in L, 2/0 AWG (Stranded ) Conductor Size, Non-Insulated, Copper/Aluminum Conductor Material
Special Features: Constructed from Aluminum For High Conductivity;Solid Center Barriers and Large Chamfers for Easy Cable Insertion;Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture;All Splices are Color Coded and Marked with Strip Lengths
Description: 1 TO 1 ALCU COMP SPLICE
extra long description: ABB CS73 AL SERVENTR COMP SPLICE A:

Additional Information

Maximum Conductor Size: #2 AWG (ASCR );#1 and #2 AWG (Stranded );#1 AWG (Solid )
For Stud Size: 5/8 in (Die)
Insulated/Non-Insulated: Non-Insulated
for use with: Basic Uninsulated Splices for Service Entrances;For Combinations of Aluminum-to-Aluminum;Aluminum-to-Copper Conductors
package quantity: 100 CT;800 PK
Made in USA: yes
Standards Met: RUS Accepted;ANSI C119.4

Manufacturer Information

Brand: Blackburn Mechanical
sub brand: Blackburn
Manufacturers Part Number: CS73
GTIN: 00783786100613
UPC: 783786100613

Taxonomies, Classifications, and Categories

Category Description: Comp & Mech Lugs and Butt Splices
Type: Compression Splice Service Entrance

Packaging

Weight: 0.05 lb/EA
Weight per each: 0.05
Carton: 100
Package: 500

Uses, Certifications, and Standards

standard: RUS Accepted. Complies with ANSI C119.4 when properly installed on Aluminum-to-Aluminum or Aluminum-to-Copper Conductors
environmental conditions: All Seasons / Conditions
Application: Basic, uninsulated Splices for Service Entrances. For Combinations of Aluminum-to-Aluminum or Aluminum-to-Copper Conductors
Mounting: None
