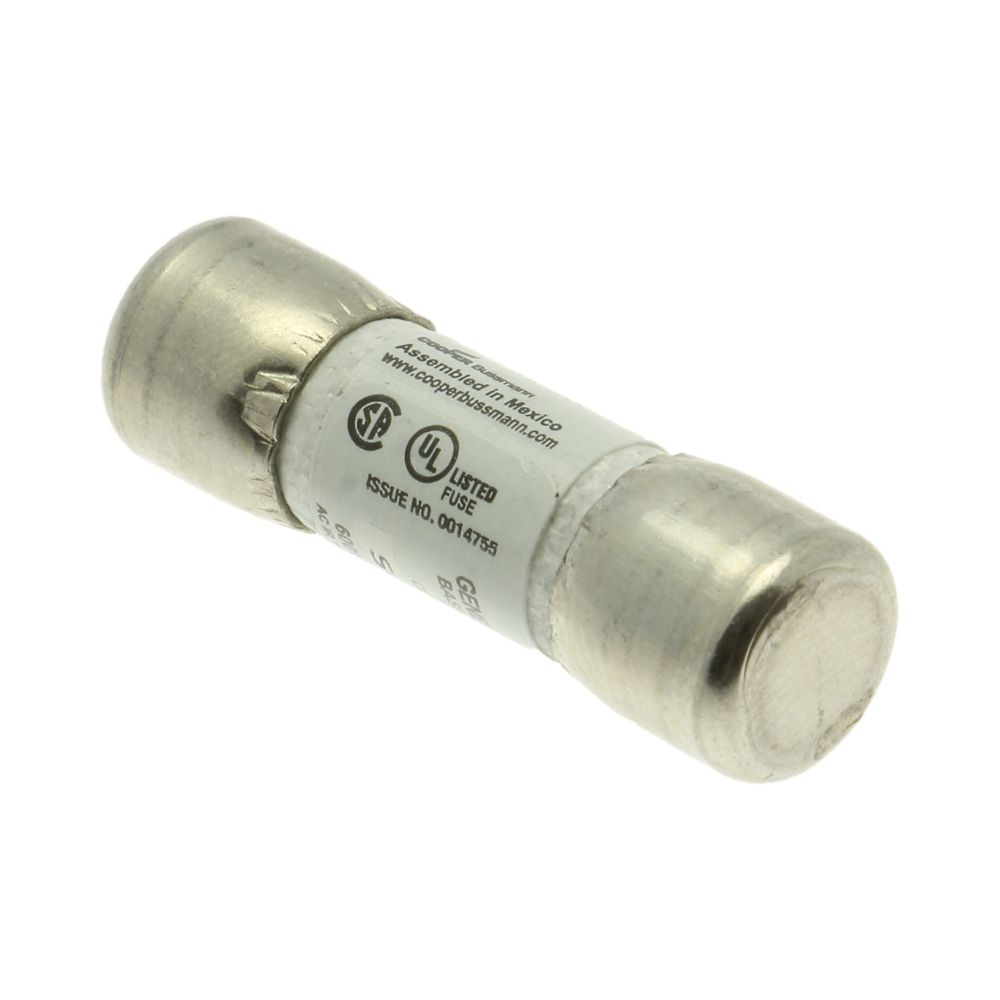

SC15 - 15A 600V TD Class G Fuse

Eaton Bussmann Series

$14.87 (Each)
$14.87 (Each)
$148.70 (Per 10)

In-Stock: 0 available locally (Tulsa, OK) (change location)

Buy Now

QTY:

Each

Also in stock

$20.64Each

SEC15

Edison Fuses
15A 600V Class G Glass Time Delay Fuse

View Item or Compare

Overview
Specifications
Current Stock
Alternate Items

Overview

Help Improve Our Data

Quick Specs

Catalog Number: SC15 Vendor Code BUS
Manufacturer: Eaton Bussmann Series
Manufacturer's Part Number: SC-15
Description: 15A 600V TD Class G Fuse
Time Delay Fuse, G Class Fuse, 12 S @ 200% Response Time, Ferrule End X Ferrule End Connection, 15 A, 600 V Ac;170 V DC, 0.41 In Diameter, 1.31 In Overall Length, 0.02 LB
Slang Terms
Categories: Distribution Fuses - Dual Element Mark as Incorrect
Classification: Fuses & Fuse Accessories
UNSPSC: 39121609 - Midget fuses
UPC/EAN/GTIN: 051712250153 / 5027590066327 / 00051712250153
Weight per unit: 0.02 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $14.87 (Each)
Carton: $148.70 (Per 10)

Stock Availability

Tulsa: 0 (Find nearest stock)
All Stores: 209

Resources

Images
: SC15 - Small Image
: SC15 - Large Image
: SC15 - Large Image
: SC15 - Large Image
: SC15 - Large Image
: SC15 - Video
Specifications Sheets
: SC15 - Specification Sheet
: SC15 - Specification Sheet
Attachments
: SC15 - Specification Sheet
Tech Bulletins
: SC15 - Tech Bulletin
Other Links
: SC15 - Other
: SC15 - Other

Help Improve Our Data

Specifications

Help Improve Our Data

Features

Current Rating: 15 A
Voltage Rating: 600 V ac;170 V dc
interrupt rating: V ac:100 kAIC (RMS Symmetrical);V dc:10 kAIC
amperage rating: 15 Amp
connection: Ferrule End X Ferrule End

Dimensions and Weight

Diameter: 0.41 in
Overall Length: 1.31 in
Size: 0.41 In Diameter X 1.31 In Length

Descriptions

Product Type: Fuse; Time Delay Fuse
Description: 15A 600V TD CLASS G FUSE
Long Description: Time Delay Fuse, G Class Fuse, 12 s @ 200% Response Time, Ferrule End x Ferrule End Connection, 15 A, 600 V ac;170 V dc, 0.41 in Diameter, 1.31 in Overall Length, 0.02 lb
Features: Basic protection Class G size-rejecting, current limiting fuses. 1/2 to 6A Fast-acting, 7 to 60A time-delay. Time-delay – 12 seconds (minimum) at 200% of rated current.
Short Description: Fuse, 15 A, 600 VAC/170 V dc, Time Delay, G Class
Special Features: Rejection Style
extra long description: BUSS SC-15 BUSS SC FUSE CLASS G CLA

Additional Information

Fuse Class: G Class
Response Time: 12 s @ 200%
Connection Type: Ferrule End x Ferrule End
Standards Met: CE Certified;UL Listed;Std. 248-5, Class G, Guide JDDZ, File E4273;CSA Certified;C22.2 No. 248.5, Class 1422-01, File 53787
package quantity: 4 CT
Made in USA: yes
dimensions: 0.4100 IN X 0.4100 IN X 1.3100 IN
class: G
media: Yes

Manufacturer Information

Brand: Eaton
Manufacturers Part Number: SC-15
GTIN: 00051712250153
UPC: 051712250153

Taxonomies, Classifications, and Categories

Category Description: Fuses & Fuse Accessories
Type: FUSE

Packaging

Weight: 0.02 lb
Weight per each: 0.02
Carton: 10

Uses, Certifications, and Standards

Application: Fusible Branch Panel Boards;HVAC Branch Circuit Protection
standard: CE Marked,RoHS Compliant
