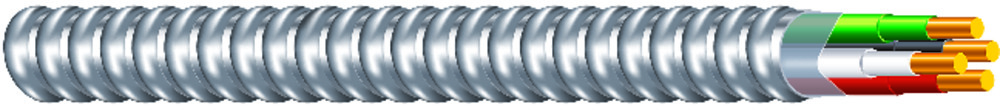

MC63WG - 6/3 WG MC Alu Armor Cable 125'

Availability: Call for Availability

Buy Now

QTY:

Each

Quick Specs

Catalog Number: MC63WG Vendor Code ALF
Manufacturer: Flexible Conduit
Manufacturer's Part Number: 68714501
Description: 6/3 WG MC Alu Armor Cable 125'
Aluminum Armored Conductor, Stranded, 19 Strands, #6 Awg Conductor Size, PVC Jacket Material, Thermoplastic Nylon Insulation Material, Copper Conductor Material, 600 V, 55 A (60°C);65 A (75°C);75 A (90°C), Black, White, , Red and Green, 3 Conductors, 125 FT Overall Length, 0.819 In Outside Diameter, +90 °C Operating Temperature, 441 LB/MFT
Slang Terms
Categories: Enhanced Commodity Codes - Wire Mark as Incorrect
Classification: BX & MC
UNSPSC: 26121517 - Copper wire
UPC/GTIN: 032886346415 / 00032886346415
Weight per unit: 0.442 (lbs/each)

Price & Packaging

Resources

Features

Material, Color, and Finish

Dimensions and Weight

Descriptions

Product Type: Aluminum Armored Conductor
Long Description: Aluminum Armored Conductor, Stranded, 19 Strands, #6 AWG Conductor Size, PVC Jacket Material, Thermoplastic Nylon Insulation Material, Copper Conductor Material, 600 V, 55 A (60°C);65 A (75°C);75 A (90°C), Black, White,, Red and Green, 3 Conductors, 125 ft Overall Length, 0.819 in Outside Diameter, +90 °C Operating Temperature, 441 lb/mft
Short Description: Aluminum Armored Conductor, Stranded, 6/3 AWG with ground, PVC Jacket, 125 ft
extra long description: SWC 68714501 MC6/3CuTHHN BkWeRd 8CG
Description: 6/3 WG MC ALU ARMOR CABLE 125'

Additional Information

Solid/Strand: Stranded
Number of Strands: 19
outside diameter: 0.819 in
Maximum Operating Temperature: +90 °C
Standards Met: RoHS Compliant;Federal Specification A-A-59544;IEEE 1202;NEC;UL 83;UL1569;UL1685
Made in USA: yes
media: Yes

Manufacturer Information
