SensorSwitch

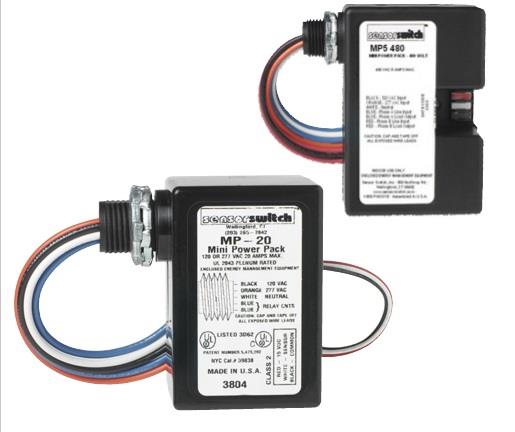

MP20

Mini Power Pack
  • Overview
  • Specifications
The MP20 mini power pack transforms 120, 240 or 277 Volts to Class II 15 VDC to power the remote sensors. Although Plenum Rated, the elongated mounting nipple allows for the MP20 to be mounted either directly through a 1/2 inch knockout in a junction box or to be located inside an adjacent box for specific local code requirements.

Up to 14 sensors may be connected to one MP20. Multi-circuit control can be handled by multiple MP20 mini power packs or MSP20 slave packs. MP20 can be wired continuously hot (line side) or on the switch leg (load side) without nuisance delays upon turn-on.
Features:
  • Dual voltage transformer
  • Self-contained relay
  • Powers up to 14 sensors
Read More
Read Less
Control Platform Sensor Switch Standalone
Control Device Type Lighting Relay
Mounting Type Unit to J Box
Product Type Power Pack
Color Black
Finish Gloss
Voltage Rating 120, 240, 277
Environmental Listing High Humidity
Series MP20
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Retail, Sports and Recreation, Warehouses

Read More Read Less
